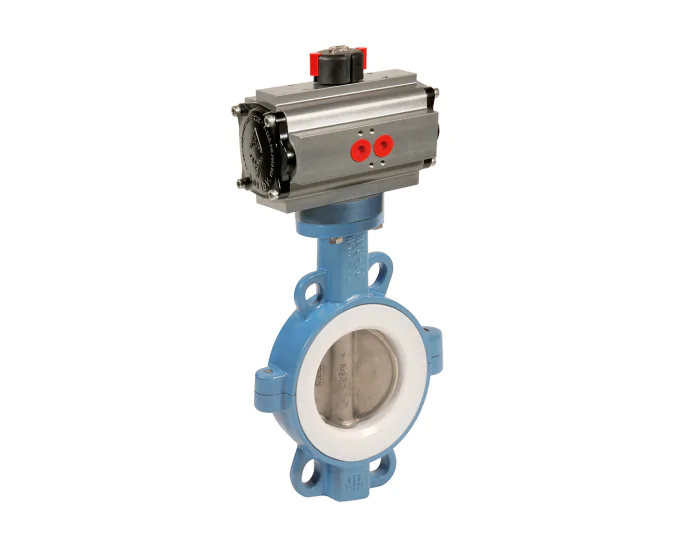

TTV Ductile iron butterfly valve 1145 + ADA/ASR pneumatic actuator
€522.97
(excl. btw)
The 1145 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc and Teflon seat. It is a wafer type, up to DN300. PN10/16 and ANSI 150.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 630 (17-4 PH)
Adjustable limit screws
Yes
Lockable
No
ATEX compatible
Yes
DN
DN50 - 2''
Face to Face (mm)
78.0
Seat
PTFE
Body material
Ductile iron
ATEX protection mode
Ex c
Number of ways
2
Disc material
Stainless steel CF8M
Position
Normally closed
PS (bar)
10
Connections
Flanged PN10/16
Surface temperature
TX
Pneumatic actuator type
Double acting
Butterfly valve design
Concentric
Wafer/lug
Wafer
Warranty period
2 years
CE
Risk category II
Range
TTV
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
3222
Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting
260545015101
S1003235
€522.97
(excl. btw)
add to cart
3223
Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return
260545016103
S1003236
€609.96
(excl. btw)
add to cart
3224
Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting
260546015102
S1003237
€614.30
(excl. btw)
add to cart
3225
Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return
260546016103
S1003238
€665.29
(excl. btw)
add to cart
3226
Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting
260547015102
S1003239
€717.10
(excl. btw)
add to cart
3227
Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return
260547016104
S1003240
€805.16
(excl. btw)
add to cart
3228
Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting
260548015103
S1003241
€903.57
(excl. btw)
add to cart
3229
Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return
260548016105
S1003242
€1,054.16
(excl. btw)
add to cart
3230
Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting
260549015104
S1003243
€1,149.83
(excl. btw)
add to cart
3231
Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return
260549016106
S1003244
€1,498.29
(excl. btw)
add to cart
3232
Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting
260550015105
S1003245
€1,315.80
(excl. btw)
add to cart
3233
Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Spring return
260550016106
S1003246
€1,587.11
(excl. btw)
add to cart
3234
Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting
260551015105
S1003247
€1,689.86
(excl. btw)
add to cart
3235
Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Spring return
260551016107
S1003248
€2,243.59
(excl. btw)
add to cart
3236
Flanged PN10/16 Ductile iron Concentric Double acting DN250 - 10''
260552015107
S1003249
€2,947.80
(excl. btw)
add to cart
3237
Flanged PN10/16 Ductile iron Concentric Spring return DN250 - 10''
260552016108
S1003250
€3,481.56
(excl. btw)
add to cart
3238
Flanged PN10/16 Ductile iron Concentric Double acting DN300 - 12''
260553015107
S1003251
€3,092.31
(excl. btw)
add to cart
3239
Flanged PN10/16 Ductile iron Concentric Spring return DN300 - 12''
260553016110
S1003252
€4,599.63
(excl. btw)
add to cart
